Technology

METHANOL-FUEL CELL

Technology

Methanol-FUEL CELL

The direct methanol fuel cell efficiently converts the liquid fuel directly into electrical energy and can sustain the flow of power on a continuous basis. Compared to other fuel cell systems, which are operated with pure hydrogen or hydrogen-rich gases from reforming processes, the fuel is fed directly via liquid methanol. HYREF's direct methanol fuel cell has a compact design and can be flexibly installed and scaled depending on the application.

Advantages

Geräusch- & vibrationsfrei

Einfacher Systemaufbau & skalierbar 5-50kW

Hoher Wirkungsgrad

C02-neutral durch den Einsatz von Bio-Methanol

Low energy & maintenance costs

High long-term operating stability – systems tested over 20,000 hours

No supply or environmental limitations (e.g. in class 1 environmental protection areas)

Infrastructure-independent implementation (ad hoc, no construction measures required)

Functionality

Technical Overview

Power level5 kW / Module
48 V DC / 115V 60 Hz
-400 V 50 Hz
skalierbar
Pufferbatterie gemäß Kundenspezifikation
Verbrauch0,8 l/kW
0,8 l/kW
Methanol/
“Grünes” Bio-Methanol
Lagerung Energieträger350 - 32.000 LiterGemäß Kundenanforderung
AußenmaßeFlexibel
Beispiel 1: 2 x 5 fuß Box
Beispiel 2: 2 x 10 fuß standard Container
Gemäß Kundenanforderung
5 kW / 350 Liter
Bis 20 kW / 7.500 Liter
BetriebsdauerCa. 5 JahreX > 10.000 h
Startzeit1 Minute
Überwachung Sekunden genaue Dauerüberwachung & Kontrolle
Startzeit1 Minute

Abmessungen 10 fuß Container

Gewicht Brennstoffzellen-Container inklusive 36 kWh Pufferbatterie ca. 3.200 Kg
Gewicht Methanolbehälter ohne Methanol ca. 1.000 Kg

Technology

Hydrogen SOFC/RSOEC

Technology

Hydrogen SOFC/RSOEC

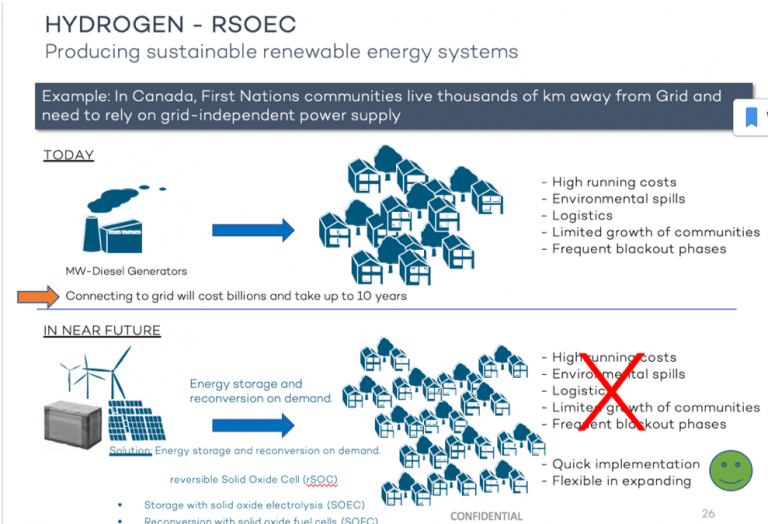

We are working to build a sustainable renewable energy system that is fully self-sufficient and capable of both storing energy (wind/solar to hydrogen) and converting it back when needed (hydrogen to electricity).

HYREF has completed the first step towards building an RSOEC fuel cell with the successful construction and testing of a 3 kW SOFC hydrogen fuel cell demonstrator.
