Solution

Mobile Communications

Fuel Cell as continuous power supply

Solution

Mobile Communications

RELIABLE, GRID-INDEPENDENT & COST EFFICIENT ENERGY

HYREF's off-grid and environmentally friendly fuel cells enable fast and easy deployment of decentralized and continuous energy solutions, e.g. for 4G and 5G infrastructure coverage.

VERY SILENT. NO VIBRATIONS. COST EFFICIENT

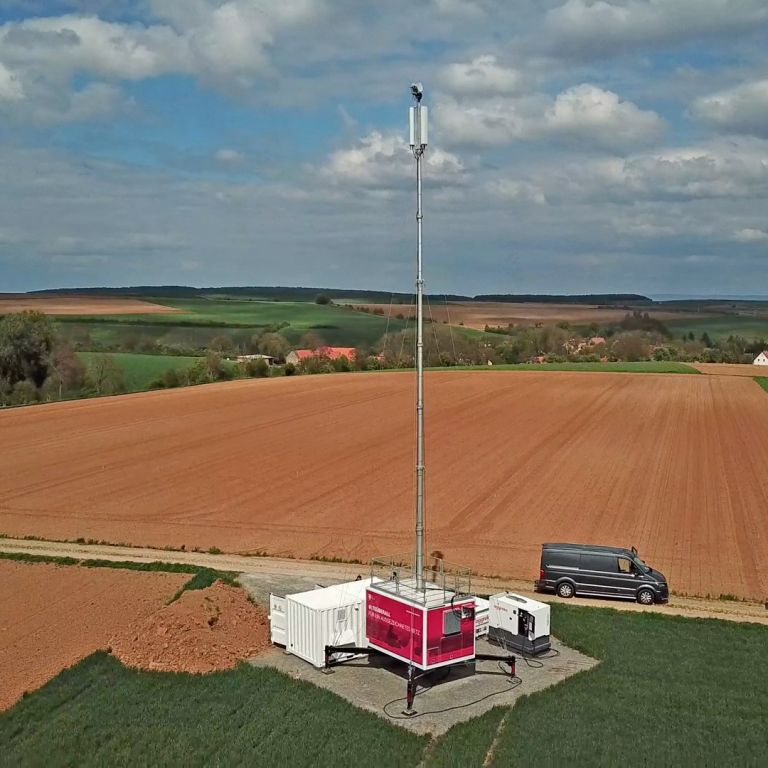

Noise & vibration free integrated in a container for permanent cell phone coverage. Low energy cost and high efficiency result in low operating cost.

LONG OPERATING TIMES. INFRASTRUCTURE-INDEPENDENT. FAST RESPONSE TIMES.

Infrastructure-independent implementation (ad hoc, no construction and flexible use) with operating times over 10,000 hours. Systems are scalable 2.5-50kW and without supply and environmental limitations (e.g. in Class 1 environmental protection areas).

Stromnetz

Wo verfügbar oder in unmittelbarer Nähe (1Km Stromkabelverlegung kostet im Schnitt €100.000)

oder

Autarke Stromversorgung (Dauerhaft)

Alternativen: Wind, Solar und Diesel Generatoren oder Brennstoffzellen von HYREF

Technical Overview

Continuous power suppy

Technical Overview

Continuous power supply

Power level5 kW / Module
48 V DC / 115V 60 Hz
-400 V 50 Hz
Scalable
Backup battery based on customer requirements
Consumption0,8 l/kW
0,8 l/kW
Methanol/
Bio-Methanol
Size of fuel tank350 - 32.000 LiterBased on customer requirements
Outside dimensionsFlexible
Example 1: 2 x 5 ft Box
Example 2: 2 x 10 ft standard Container
Based on customer requirements
5 kW / up to 750 Liter for NEA
5 - 20 kW / up to 7.500 Liter for continuous power
Expected RuntimeApprox. 5 YearsX > 10.000 h
Startup time1 Minute
Monitoring Constant remote monitoring (every second)

Specs 10 ft container

Weight fuel cell container including 36 kWh backup battery approx. 3,200 Kg

Weight methanol container (empty) approx. 1,000 Kg
